Pilot Information for FLL

​​​​​​FLL Airport Diagram​ Airfield Infor​mation

Location​
​FAA Identifier ​FLL
Lat\Long​ ​26-04-21.3000N/80-09-09.9000W
​Elevation
​65 Ft.
​Time Zone ​UTC - 4 (UTC-5 during standard time)
Sectional Chart​ ​Miami


Airp​ort Communications



Unicom:

122.95
ATIS: 135.00
WX ASOS: Phone 954-359-7857
Ft. Lauderdale Ground: 121.4 121.7
Ft. Lauderdale Tower: 119.3 120.2
Clearance Delivery: 128.4

Ramp Control North:
Hours: 0600-2359
7 Days a Week
Gates:
T1 & T2: All Gates
T3: OnlyE1, E3, E5, E7, E9

118.175

Ramp Control South:
Hours: 0600-2359
7 Days a Week
Gates:
T3: Only E2, E4, E6, E8, E10, F1-F10
T4: All Gates

129.875

FBO, Fuel Pr​oviders

Jetscape:

130.925

   954-359-9991/888-FLL-JETS

Sheltair Air Services:

130.10

   954-359-3200/800-394-5388

National Jets Air Center:

132.00

   954-359-0066/800-525-0166

Signature Flight Support:

129.72

   954-359-0000


RUNWAY 1​0L/28R

Dimensions:

9000 X 150 ft.


Surface: Concrete-Asphalt/Grooved
Runway Edge Lights High Intensity

RUNWAY 10L

RUNWAY 28R

Displaced Threshold: 577 ft. 604 ft.
Declared Distances: TORA: 9000 TODA: 9000
ASDA: 9000 LDA: 8424
TORA: 9000 TODA: 9000
ASDA: 9000 LDA: 8394
Markings: Precision Precision
Visual Slope Indicator: 4-light PAPI on left
(3.00 degrees glide path)
4-light PAPI on left
(3.00 degrees glide path)
RVR Equipment: Touchdown Touchdown
Approach Lights: MALSR: 1,400-foot medium intensity approach lighting system with runway alignment indicator lights MALSR: 1,400-foot medium intensity approach lighting system with runway alignment indicator lights
Touchdown Point: yes, no lights

yes, no lights
Instrument Approach: ILS/DME ILS/DME
EMAS: 409 X 170 ft. 251 X 170 ft.


RUNWAY 1​0R/28L

Dimensions:

8000 X 150 ft.

Surface:

Concrete/Grooved

Runway Edge Lights

High Intensity

RUNWAY 10R

RUNWAY 28L

Displaced Threshold:

None

None

Declared Distances:

TORA: 8000 TODA: 8000
ASDA: 8000 LDA: 8000

TORA: 8000 TODA: 8000
ASDA: 8000 LDA: 8000

Markings:

Precision

Precision

Visual Slope Indicator:

4-light PAPI on Right
(3.00 degrees glide path)

4-light PAPI on left
(3.00 degrees glide path)

RVR Equipment:

Touchdown

Touchdown

Approach Lights:

MALSR: 1,400-foot medium intensity approach lighting system with sequenced flashers

MALSR: 1,400-foot medium intensity approach lighting system with sequenced flashers

Touchdown Point:

yes, no lights

yes, no lights

Instrument Approach:

ILS/DME

ILS/DME

EMAS:

563 X 179 ft.

563 X 179 ft.

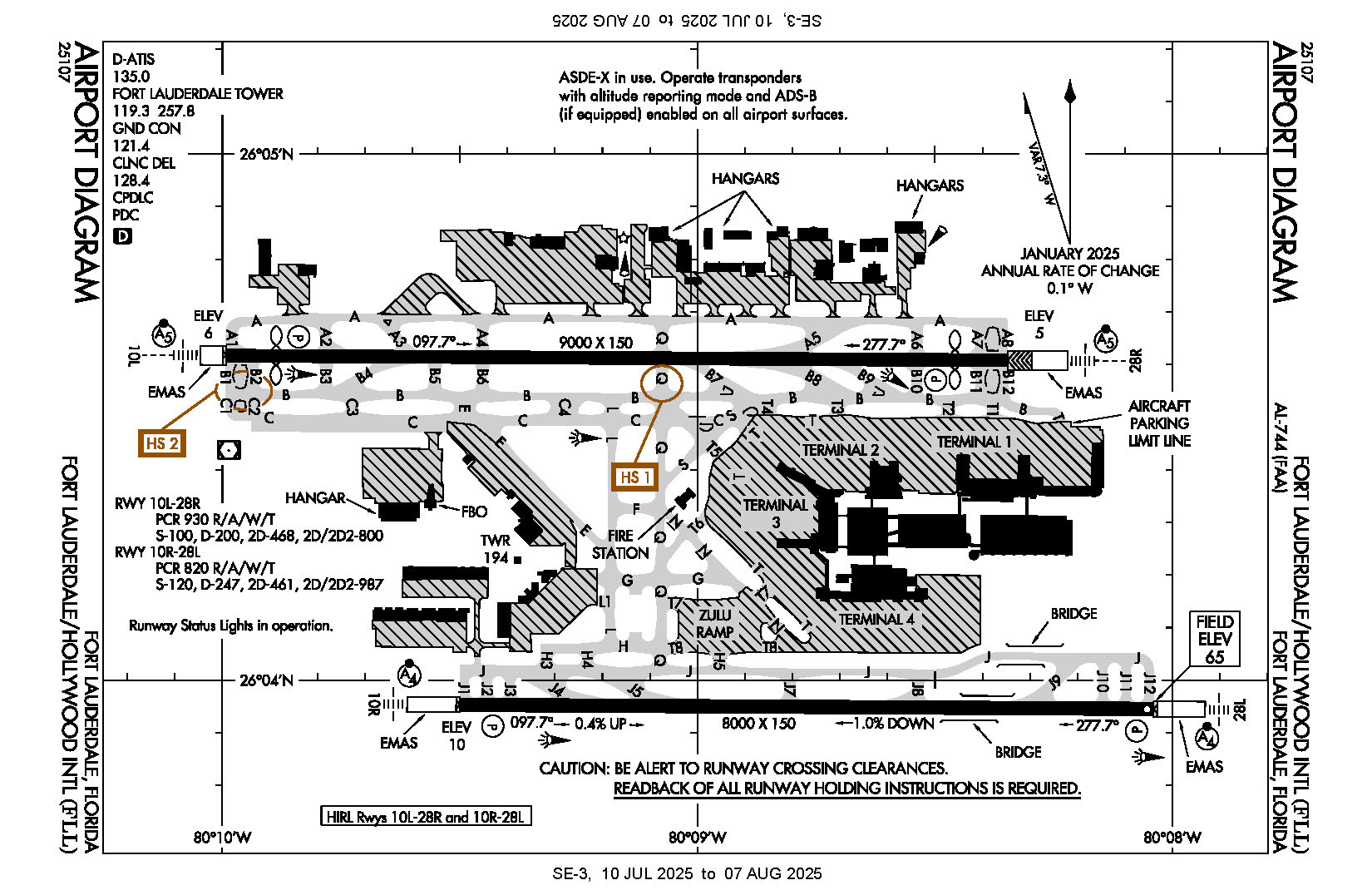

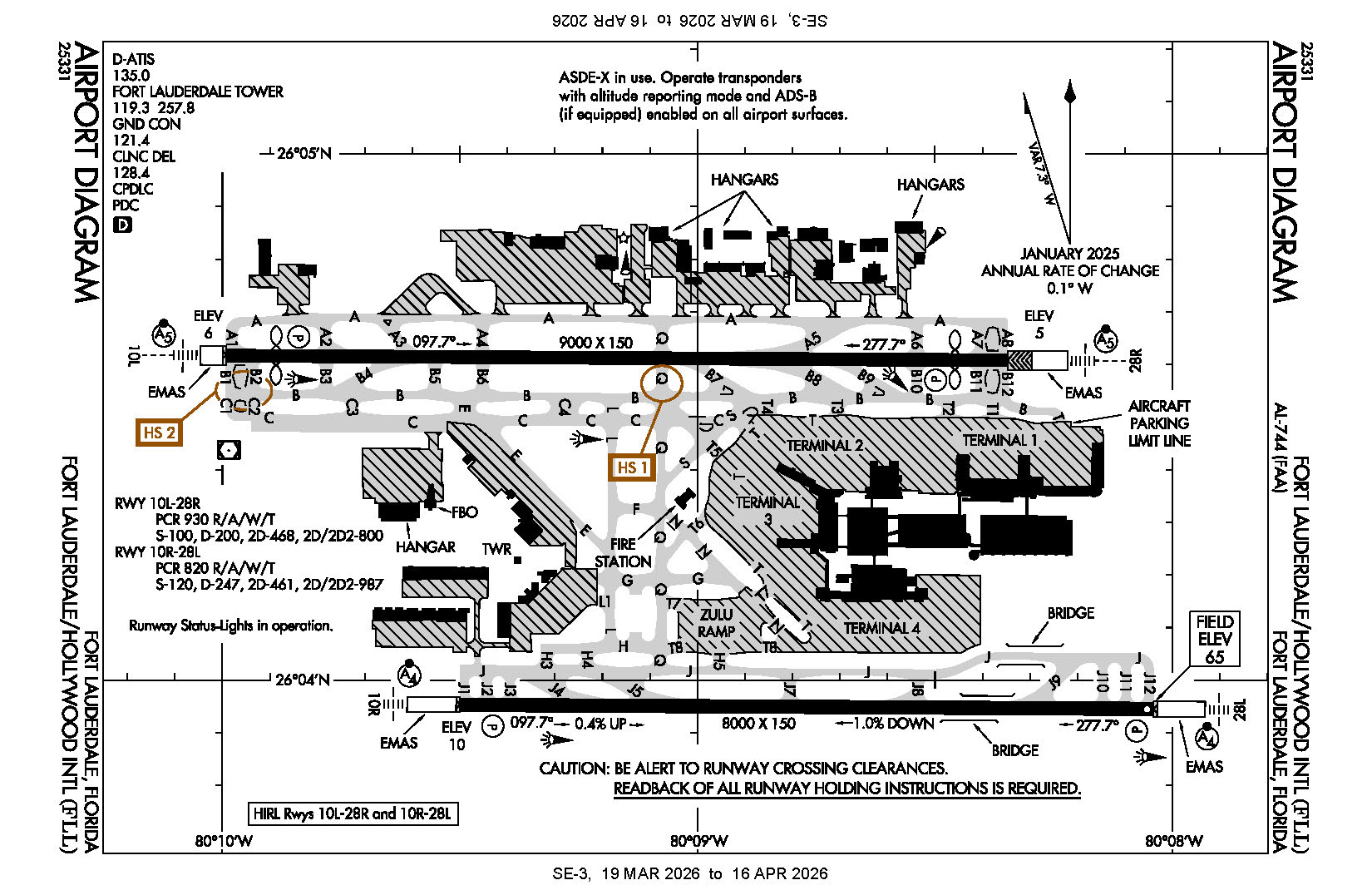

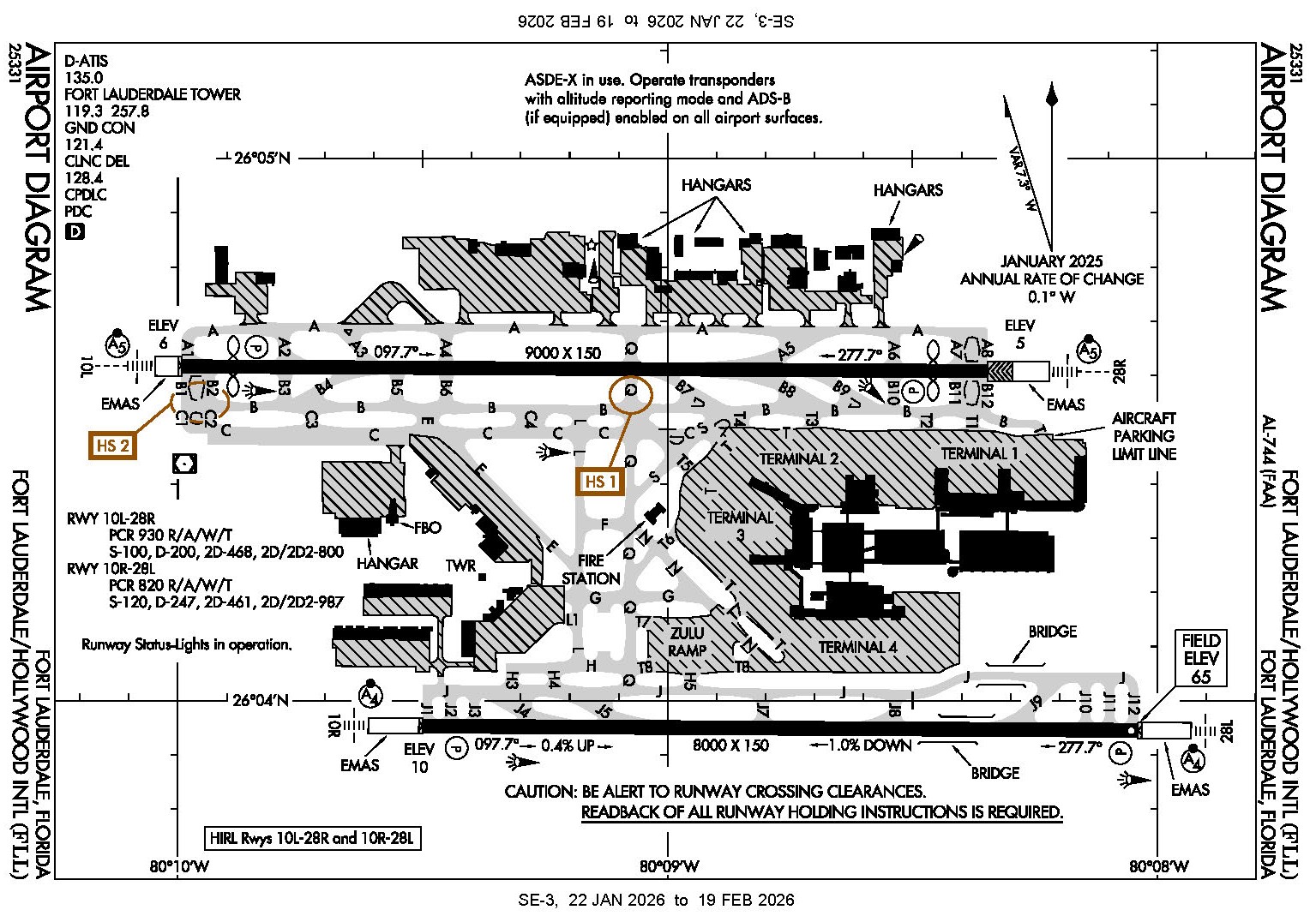

Airfield Diagram with Hot Spot (HS)Areas​​View Print a larger version of the Airport Diagram updated December 2​, 2021.

NOTE: Diagram is not for navigational purposes. ​

Airfield Construction NOTAMs ​



NOTE: Please check with the local Flight Service Station for a listing of all active NOTAMs.



Pilot ​Alerts





Tarmac Delay Plan


The Fort Lauderdale-Hollywood International Airport has prepared a Tarmac Delay Contingency Plan pursuant to §42301 of the FAA Modernization and Reform Act of 2012. Read the 2020 Tarmac Delay Plan (PDF).


Letter To Airmen


None at this time.

Voluntary South Runway (10R/28L) User Program


​​​​​​​​​​​
